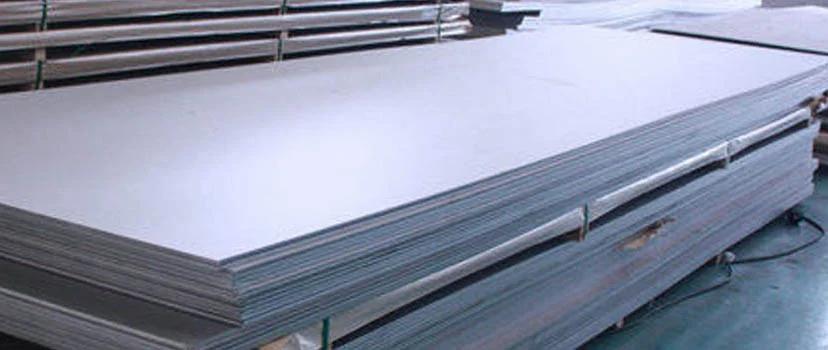

SA 387 GR 12 PLATE
DUPLEX STEEL & ENGINEERING is one of the outstanding dealer and provider of Alloy Steel SA 387 Gr. 12 Sheets Plates Coils, which is utilized by fabricators who serve the oil, gas and petrochemical industry. The costs that we offer Alloy Steel SA 387 Grade 12 Plates is the least one can expect and its quality part is just lovely which say a lot of the absolute dimensional precision of the item. Compound Steel Grade 12 Coils is frequently utilised in Transformers, Heat Exchangers, Oil Refineries, Brine Heaters, Space Research, Steel industry, Engineering ventures, General Piping Industry, and so forth. The offered Alloy Steel SA 387 Grade 12 Slatting Coils are made from the best quality material and driving systems as per the set standards of industry. Amalgam Steel Grade 12 Perforated Coils are vigorously requested all through the market, and known for properties like toughness, amazing execution and simplicity of support. We are noticeable maker, exporter and stockiest of Alloy Steel SA 387 Gr. 12 Plates to our regarded customers, which are broadly utilized everywhere for shifted purposes. We offer different kinds of Alloy Steel Gr. 12 Coils to our mechanical clients, all with a base 99.9 % virtue. Combination Steel SA 387 Gr. 12 Slatting Coils has some incredible highlights to offer, for example, Long life, Corrosion opposition, Permanence in nature and then some. We at DUPLEX STEEL & ENGINEERING Believe in Offering Prime/Genuine Materials Accompanied with Prompt and Personalized Services.
SPECIFICATIONS of SA 387 GR 12 PLATE :
| Thickness | 0.1 to 100mm |
| Width | 1500mm-4200mm |
| Length | 3000mm-18000mm |
| Production | Hot-Rolled (HR) / Cold-Rolled (CR) |
| Heat Treatment | Rolled/Normalised/N+T/QT |
| Dimension range | 1.5mm -260mm x 1000mm-4000mm x 1000mm-18000mm |
A387 Grade 12 Cl 1/2 Steel Plate Equivalent Standard :
| BS | EN | ASTM/ASME | DIN |
|---|---|---|---|
| 620B | 3 CRMO 45 | A387-12-2 | 13 CRMO 44 |
Alloy Steel ASTM A387 GR 12 CL. 1 / 2 Plates Chemical Composition :
| C | Mn | P | S | Si | Cr | Mo | V |
|---|---|---|---|---|---|---|---|
| 0.05-0.17 | 0.40-0.65 | 0.025 | 0.025 | 0.15-0.40 | 1.00 - 1.50 | 0.45 - 0.60 | - |
Alloy steel ASME SA387 GR. 12 CL. 1/ 2 Plates Mechanical Properties :
| Tensile strength, ksi [MPA] | Yield strength, min, ksi [MPa]/(0.2% offset) | Elongation in 8 in. [200mm], min % | Elongation in 2 in. [50mm], min, % | Reduction of area, min % |
|---|---|---|---|---|
| 65-85 [450-585] | 40 [275] | 19 | 22 | - |
ASTM A387 12 CL 2 Steel Plates Available Sizes
| 1/8" | 3/8" | 3/4" | 1-1/2" | 3" |
| 3/16" | 1/2" | 1" | 2" | 4" |
| 1/4" | 5/8" | 1-1/4" | 2-1/2" | |
| *1/8" thick plate is available in
one size only 60"x 120". The 3/6" thick plate is available only as 48" x 144" and 96" x 144". |
||||
ASME SA 387 Gr. 12 Cl. 2 Plates Available Thickness, Widths and Lengths
|
Thickness
|
Width
|
Length
|
|---|---|---|
|
4
|
2000
|
6000
|
|
5
|
2000
|
6000
|
|
6
|
2000
|
6000
|
|
6
|
2500
|
6000
|
|
8
|
2000
|
6000
|
|
8
|
2500
|
6000
|
|
10
|
2000
|
6000
|
|
12
|
2000
|
6000
|
|
15
|
2000
|
6000
|
|
16
|
2000
|
6000
|
|
20
|
2000
|
6000
|
|
25
|
2000
|
6000
|
|
32
|
2000
|
6000
|
|
40
|
2000
|
6000
|
|
50
|
2000
|
6000
|
|
60
|
1800
|
3400
|
SA 387 GR 12 PLATE Price (As per demand and manufacturer):
| SA 387 GR 12 PLATE | Price |
|---|---|
| SSAB SA 387 GR 12 PLATE Wear Resistant Steel Plate price | ₹ 39,364.00-₹ 50,099.63 / Ton |
| Top quality SA 387 GR 12 PLATE Wear Resistant Steel Plate | ₹ 42,870.97-₹ 1,21,598.96 / Ton |
| price SA 387 GR 12 PLATE price | ₹ 42,870.97-₹ 1,21,598.96 / Ton |
| SA 387 GR 12 PLATE Wear Steel Plate | ₹ 42,870.97-₹ 1,21,598.96 / Ton |
| Hot rolled SA 387 GR 12 PLATE Wear Resistant Steel Plate | ₹ 1,04,493.52-₹ 1,14,513.44 / Ton |
| Best Price SA 387 GR 12 PLATE Steel Plate | ₹ 42,870.97-₹ 1,21,598.96 / Ton |
| SA 387 GR 12 PLATE Wear Resistant Steel Plate/Sheet Price per kg | ₹ 42,942.54-₹ 71,570.90 / Ton |
| Manganese wear resistant steel plate SA 387 GR 12 PLATE | ₹ 42,942.54-₹ 53,678.18 / Ton |
| Wear plate high quality SA 387 GR 12 PLATE | ₹ 1,00,199.26-₹ 1,28,827.62 / Ton |
Testings (Destructive, Non Destructive):
- Positive Material Identification – PMI Testing
- Chemical Analysis – Spectro Analysis
- Mechanical Testing Such as Tensile, Elongation, Reduction of Area
- Micro Test
- Macro Test
- Hardness Test
- Pitting Resistance Test
- Intergranular Corrosion (IGC) Test
- Flaring Test
- Flattening Test
- Hydrostatic Test
- Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
- Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
- Radiography Test
- Dye Penetrant Test (DP Test)
- Ultra Sonic Test (UT)
- Eddy Current Testing
- Impact Test
- Bend Test
APPLICATION
