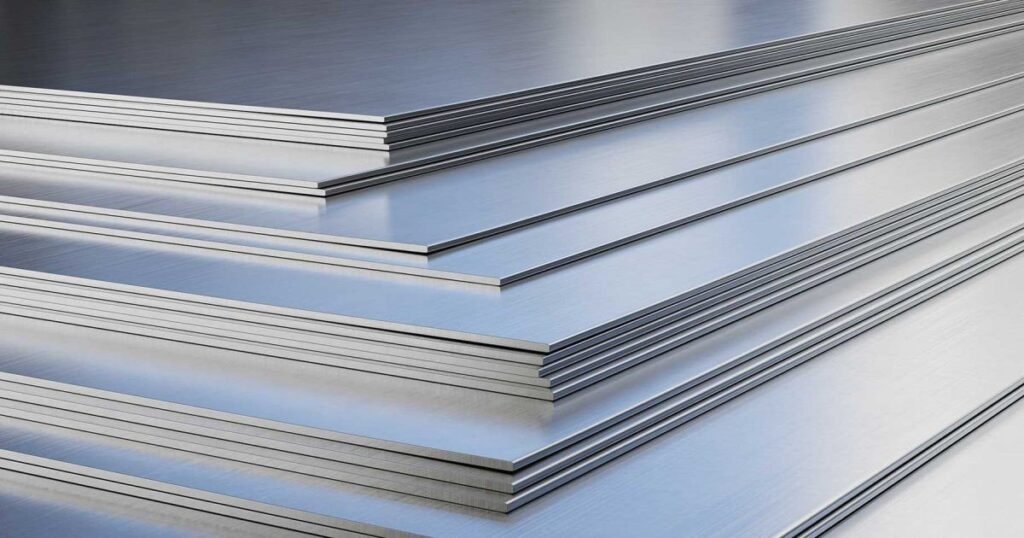

SMO 254 Plates
What are SMO 254 Plates?
SMO 254 Sheets are high-performance stainless steel sheets renowned for their exceptional corrosion resistance, strength, and toughness. This advanced material offers a significant improvement over traditional stainless steels, making it ideal for demanding applications in industries such as oil and gas, chemical processing, and marine environments.
Key Features of SMO 254 Plates
- Exceptional Corrosion Resistance: Exhibits superior resistance to pitting, crevice corrosion, and stress corrosion cracking in harsh environments, including those with high chloride content.
- High Strength: Offers significantly higher strength compared to conventional stainless steels, allowing for lighter and more compact designs.
- Excellent Weldability: Enables easy fabrication and construction.
- Enhanced Toughness: Provides excellent impact resistance and ductility.
| Standards | ASTM A240 / ASME SA240 |
| Dimensions | ASTM, ASME, and API |
| Sheets Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets Plates Thickness | 4mm-100mm |
| Sheets Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface Finish | No.1, 2B, BA, 8K Mirror, Hairline, satin (Met with Plastic Coated) Embossed, brush, No.4, HL, matt, pvc etc. |
| Value added services | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Hardness | Half Hard, Quarter Hard, Soft, Hard, Spring Hard |
| Form | Coils, Foils, Rolls, Strip, Flats, Blank (Circle), Ring (Flange) |
Other Types Of SMO 254 Plates
| 6 Moly Perforated Plate | SMO 254 Cold Rolled Plate |
| 20 Gauge SMO 254 Plate | SMO 254 High Performance Plate |
| Precision Ground Stainless Steel Alloy 254 Plate | Extra-Heavy Alloy 254 Plate |
| SMO 254 Perforated Plate | 6 Moly Thik Plate |
| SMO 254 Plate | 10 Gauge SMO 254 Plate |
| Stainless Steel Alloy 254 Plain Plates | SMO 254 2B Finish Plates |
| ASME SA240 SMO 254 Cold Rolled Plates | ASTM A240 SMO 254 Plates |
| Alloy 254 Plates Cut To Size | Polished SMO 254 Plate |
| SMO 254 BA Finish Plates | Alloy 254 HR Plates |
| Quality SMO 254 Plate | SMO 254 CR Plates |
| SMO 254 Custom Length Plate | Custom Alloy 254 Plates |
SMO 254 Plates Equivalent Grade
| STANDARD | WERKSTOFF NR. | UNS | SIS | AFNOR | EN |
| SMO 254 | 1.4547 | S31254 | 2378 | Z1 CNDU 20.18.06Az | X1CrNiMoCuN20-18-7 |
SMO 254 Plates Chemical Composition
| Grade | Ni | Cr | Mo | Cu | N | C | Mn | Si | P | S |
| SMO 254 | 17.5 – 18.5 | 19.5 – 20.5 | 6 – 6.5 | 0.5 – 1 | 0.18 – 0.22 | 0.02 max | 1 max | 0.8 max | 0.03 max | 0.01 max |
SMO 254 Plates Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1320-1390 ℃ | 650 | 300 | 35 % |
APPLICATION
Duplex Steel and Engineering Company is a leading supplier of high-quality SMO 254 Sheets. We offer a wide range of sizes and specifications to meet your specific project requirements. Our commitment to quality and customer satisfaction ensures that you receive products that exceed your expectations.
