Super Duplex Steel S32760 Buttweld Fittings
What are Super Duplex Steel S32760 Buttweld Fittings?
Super Duplex Steel S32760 Buttweld Fittings are high-performance components crafted from a specialized type of stainless steel renowned for its exceptional strength, corrosion resistance, and toughness. These fittings are widely used in industries such as chemical processing, oil and gas, and marine environments due to their superior performance in demanding applications.
Key Features of Super Duplex Steel S32760 Buttweld Fittings
- Exceptional Corrosion Resistance: Exhibits superior resistance to pitting, crevice corrosion, and stress corrosion cracking in harsh environments, including those with high chloride content.
- High Strength: Offers significantly higher strength compared to conventional stainless steel fittings, ensuring durability and reliability in demanding conditions.
- Excellent Weldability: Enables seamless and strong connections in piping systems.
- Enhanced Toughness: Provides excellent impact resistance and ductility.
| Specifications | ASTM A815 / ASME SA815, ASTM A182 & ASME SA182 |
|---|---|
| Forged Fittings Standards | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Buttweld Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Buttweld Fittings Size | 1/2” NB to 24″NB in. (Seamless & 100% X-Ray Welded, Fabricated) |
| Forged Fittings Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Buttweld Fittings Type | Seamless / Welded / Fabricated |
| Forged Fittings Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Forged Fittings Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Buttweld Fittings Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Buttweld Fittings Thickness | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
Other Types Of Super Duplex Steel S32760 Buttweld Fittings
| SDSS S32760 Buttweld Elbow | Super Duplex Steel S32760 Stub End |
| SDSS S32760 Fittings | Super Duplex Steel S32760 Socket weld Fittings |
| Super Duplex Steel S32760 Pipe Fittings | Super Duplex Steel S32760 Industrial Fittings |
| S32760 Duplex Steel Forged Fittings | Super Duplex Steel S32760 Threaded Fittings |

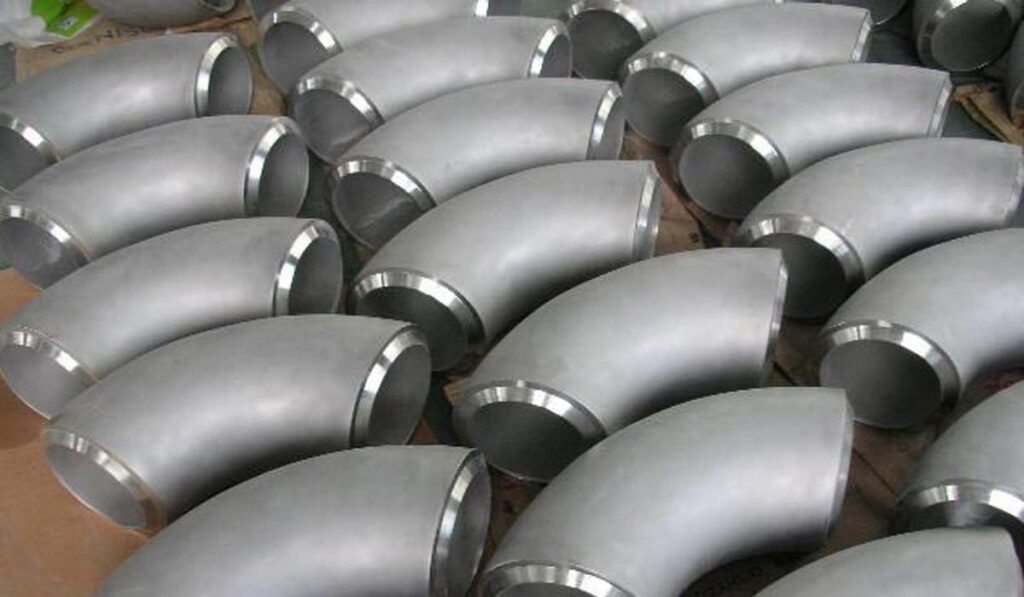

| S32760 Duplex Stainless Steel 90 Degree Elbow | UNS S32760 Buttweld Pipe Fittings |
| F55 Duplex Stainless Steel Seamless Fittings | Duplex Stainless Steel F55 Welded Fittings |
| Duplex S32760 Half Couplings | Duplex S32760 Concentric Reducer |
| ASME SA182 Super Duplex Steel S32760 Forged Fittings | ASTM A815 Super Duplex Steel S32760 Butt weld Fittings |
| Duplex Stainless Steel S32760 Pipe Bend | Super Duplex Steel S32760 Bushing |
| Super Duplex Steel S32760 High Pressure Forged Fittings | S32760 Duplex Steel Threaded Plugs |
| ANSI B16.11 Super Duplex Steel S32760 Forged Fittings | ANSI B16.9 Super Duplex Steel S32760 Pipe Fittings |
Super Duplex Steel S32760 Buttweld Fittings Equivalent Grade
| STANDARD | WERKSTOFF NR. | UNS |
| Alloy 100 | 1.4501 | S32760 |
Super Duplex Steel S32760 Buttweld Fittings Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32760 | 0.05 max | 1.00 max | 1.00 max | 0.030 max | 0.010 max | 24.00 – 26.00 | 3.00 – 4.00 | 6.00 – 8.00 | 0.20 – 0.30 | 57.61 min |
Super Duplex Steel S32760 Buttweld Fittings Mechanical Properties
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| Super Duplex S32760 | 7.8 | 0.281 | 1350 | 2460 |
APPLICATION
Duplex Steel and Engineering Company is a leading supplier of high-quality Super Duplex Steel S32760 Buttweld Fittings. We offer a wide range of sizes and specifications to meet your specific project requirements. Our commitment to quality and customer satisfaction ensures that you receive products that exceed your expectations.
